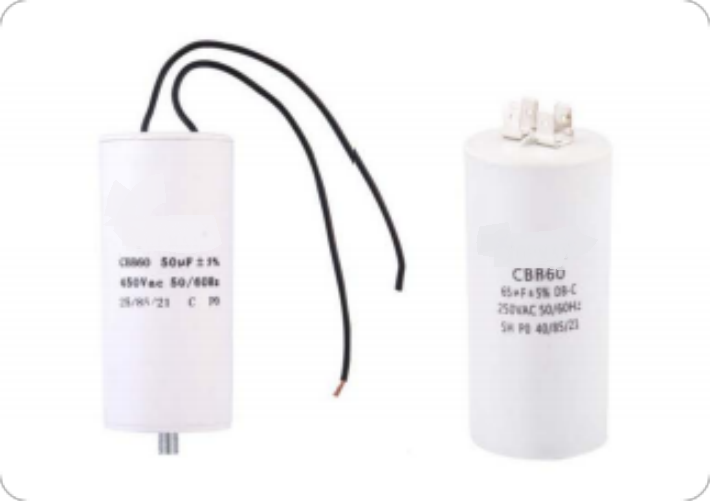

AC MOTOR CAPACITOR

Stable phase shift compensation

Using precision metallized film technology,providing stable capacitive current during motor operation, improving the single-phase motor power factor to over 0.9 and ensuring efficient and stable operation.

low dielectric loss

Using high-quality polypropylene (PP) film dielectric, the loss tangent (tanδ) is significantly lower than electrolytic capacitors, significantly reducing operating temperature rise and improving system energy efficiency.

Long-term capacity stability

the capacitor achieves a capacity decay of <0.0005 after 50,000 hours of operation under rated conditions.

harmonic tolerance

withstand high-order harmonic currents generated by motor operation,ensuring stable operation in complex power grid environments.

Stable performance across the entire temperature range.

Capacitance change rate is less than 2% within a wide temperature range of -40°C to +85°C, adapting to harsh environmental temperature fluctuations.

Capacitance(uf)	125VAC		200/250VAC		300/330VAC
Capacitance(uf)	D	H	D	H	D	H
60	36	70	36	70	36	85
75	36	70	36	70	36	85
150	36	70	36	85	46	85
180	36	70	36	85	46	85
250	36	70	36	85	46	85
300	36	70	36	85	46	85
450	36	70	46	85	46	111
500	36	85	46	85	46	111
600	36	85	46	85	46	111
700	46	85	46	111	52	111
1100	46	85	52	111	52	111
