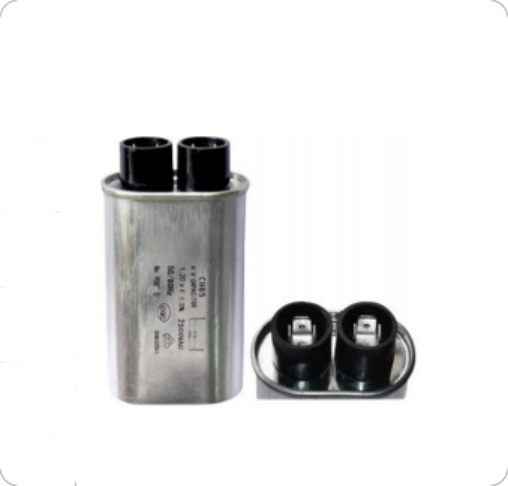

MICROWAVE CAPACITOR

High Voltage Resistance

Using a specially designed metallized polypropylene film, it can withstand operating voltages exceeding 2000-2100VAC, meeting the high-voltage requirements of microwave oven magnetrons and excellent insulation and self-healing properties effectively prevent high-voltage breakdown.

Large Capacity, High Energy Storage

Typical capacity ranges from 0.6-1.2μF, capable of storing up to 1-2 joules of energy.Provides instantaneous, high-current discharge to the magnetron, ensuring efficient microwave output.

High-frequency characteristics.

Optimized for 2450MHz microwave frequencies,low dielectric loss (tanδ < 0.001) reduces energy conversion losses.

High-temperature stability.

Using high-temperature film materials and a specialized packaging process.Sustainable, long-term operation at ambient temperatures exceeding 100°C.

Shock-resistant reliability.

Tested over 5kV for high-voltage surge protection.

Compact design.

Optimized internal structure for miniaturization,Meets the installation requirements of microwave ovens with limited space.

2100VAC
No	capacitance(uf)	Dimension(mm)
No	capacitance(uf)	Width	Thickness	Height
1	0.6	32	52	65
2	0.7	32	52	65
3	0.76	32	52	71
4	0.8	32	52	71
5	0.82	32	52	71
6	0.85	32	52	71
7	0.87	32	52	71
8	0.9	32	52	71/85
9	0.92	32	52	71/85
10	0.95	32	52	71/85
11	0.98	32	52	80
12	1	32	52	80
13	1.05	32	52	85
14	1.1	32	52	85
15	1.15	32	52	85
16	1.2	32	52	90
2500VAC
No	capacitance(uf)	Dimension(mm)
No	capacitance(uf)	Width	Thickness	Height
1	0.66	32	52	71
2	0.8	32	52	80
3	0.89	32	52	95
4	0.95	32	52	100
5	1	32	52	110
6	1.02	32	52	110
7	1.05	32	52	110
8	1.1	32	52	110
9	1.2	32	52	120
10	1.3	45	70	100
11	1.05	45	70	100
